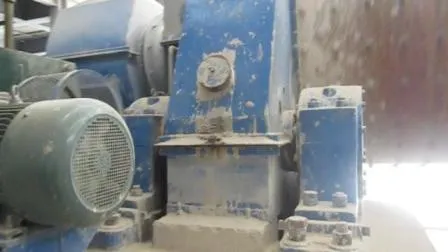

High Output Cement Ball Mill Prices
Basic Info
| Model NO. | Various Mode |
| Type | Cement Mill |
| Motor Type | AC Motor |
| Motor Power | 22KW |
| Rotationl Speed | 21-23r/min |
| Application | Mine |
| Materials | Iron |
| Condition | New |
| Certificate | ISO9001,ISO14000,Ce |
| Design | by Professional Engineer |
| Color | as Your Request |
| Installation | Under Our Engineer′s Guide |
| After Sale Service | We Offer |
| Testing | We Offer |
| Experience | More Than 50 Years |
| Transport Package | Standard Export Packing |
| Specification | ISO9001, ISO14000, CE |
| Trademark | ZK Brand |
| Origin | Zhengzhou, China |
| Production Capacity | Customized |
Product Description
High Output Cement Ball Mill Prices
Introduction of Cement Mill
The cement mill is key equipment for the grinding process of the cement clinker after the crushing process of it. It is mainly used in the cement silicate product industry. After long term design and manufacture of the cement mill, our company now has series of cement mill with various specifications to meet with different requirement from our customers.
Features of Cement Mill
Our company adopts suitable transmission methods according to different specifications. We have brim drive and center drive as transmission form. The cylinder adopts new type step lining to increase the grinding area. And it is easily repairable and changeable. The new designed separate-chambered structure adopts flexible lifting blade and fixed lifting blade and it is easily fixed and repaired.
Working Principle of Cement Mill
The cylinder will rotate by the transmission device. Due to the inertial centrifugal force, the steel balls will stick on the liner plate and rotate with the cylinder together. When the steel balls come to a certain height, it will fall down by gravity and impact the raw material. And the repeated going-up, falling down, slide and roll of the steel balls can grind the raw material together with the liner plates.
Technical Data
Specification | Output (t/h) | Rev | Grinding | Electromotor | Reducer | ||
Model | Power(kw) | Model | Ratio of speed | ||||
Ф1.2x4.5 | 1.4 | 30.3 | 2 | YR250M-6 | 55 | ZD30-8 | 4.481 |
Ф1.5x5.7 | 3.5 | 26.34 | 11 | JR127-8 | 130 | ZD40-7 | 4 |
Ф1.83x6.4 | 6 | 23.9 | 18 | JR137-8 | 210 | ZD60-8 | 4.5 |
Ф1.83x7 | 6.5 | 24.5 | 20 | JR138-8 | 245 | ZD60-8 | 4.5 |
Ф2x9 | 9.5-10 | 23.88 | 31 | JR158-8 | 380 | ZD70-8 | 4.5 |
Ф2.2x6.5 | 8-9 | 21.4 | 30 | JRQ158-8/YR630-8 | 380 | ZD70-8 | 5 |
Ф2.2x6.5 | 14 | 21.4 | 30 | JRQ158-8/YR630-8 | 380 | ZD70-9 | 5 |
Ф2.2x7 | 12 | 21.4 | 30 | JR158-8 | 380 | ZD70-9 | 5 |
Ф2.2x7.5 | 13 | 21.4 | 32 | JR158-8 | 380 | ZD70-9 | 5 |
Ф2.2x8 | 11-12 | 21.4 | 37 | JR158-8 | 380 | ZD70-9 | 5 |
Ф2.2x9.5 | 14-16 | 21.4 | 43 | JR1510-8 | 475 | ZD70-9 | 5 |
Ф2.2x13 | 16 | 20.3 | 55 | YR630-8/1180/Y100L-8 | 630/11 | JD630/ZS82.5-7 | 6.3/99.96 |
Ф2.4x7 | 14-16 Closed-circuit | 20.4 | 36 | JR1510-8 | 475 | JDx450 | 5 |
Ф2.4x8 | 16-17 Closed-circuit | 20.3 | 41 | JR1512-8/Y180L-8 | 570/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x9 | 17-1 Closed-circuit | 20.3 | 46 | YR630-8/1180/Y100L-8 | 630/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x10 | 18-19 Open circuit 20-22 Closed-circuit | 20.3 | 50 | YR630-8/1180/Y100L-8 | 630/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x11 | 19-21 Open circuit | 20.3 | 60 | YR630-8/1180/Y100L-8 | 630/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x12 | 25-27Open circuit | 20.3 | 61 | YR800-8/1180/Y100L-8 | 800/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x13 | 25-27 Open circuit | 20.3 | 66 | YR800-8/1180/Y100L-8 | 800/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.4x13 | 21-23 Open circuit | 20.3 | 66 | YR1000-8/1180/Y160M-4 | 1000/11 | JD630/ZS82.5-7 | 6.333/99.96 |
Ф2.6x10 | 25-27 Closed-circuit | 20.3 | 60 | YR800-8/1250 | 800 | JD800 | 5.5 |
Ф2.6x13 | 27-29 | 19.1 | YR1000-8/1180/Y160M-4 | 1000/11 | 5.5/280 | ||
Ф3x9 | 33-34Open circuit | 19.6 | 79 | YR1000-8/1180/Y160M-4 | 1000/11 | NAL108/8/ZS110-19 | 8/280 |
Ф3x9 | 36.5 Open circuit | 17.6 | YR118/61-8 | 1000 | 42.163 | ||
Ф3x11 | 35-40 Open circuit | 18.3 | 97 | YR1250-8/1430/YR160M-4 | 1250/11 | YNL1210 | 6.3 |
Ф3x11 | 47Open circuit | 17.7 | YR118/74-8 | 1250 | 42.39 | ||
Ф3x12 | 38-40 Closed-circuit | 18.1 | YR1250-8/1430 | 1250/11 | 41.27 | ||
Ф3.2x11 | 40 Closed-circuit | 18 | 103 | YR1400-8/1430/Y160M-4 | 1400/11 | YNL1210/ZS110-19 | 12.35/28 |
Ф3.5x11.5 | 65-70Open circuit | 16.5 | TYD143/49-8 | 2-1000 | 36.239 | ||
Ф3.5x11.5 | 50 Closed-circuit | 17.2 | 126 | YR1800-8/1430/Y200L2-2 | 1800/37 | JSX1300A/JMX560 | 43.02/318 |
Ф3.8x13Double sliding shoe | 70-75 Closed-circuit | 16.6 | YRKK800-8 | 2500 | 44.9 | ||
Ф3.8x13 | 60-62 | 16.3 | 170 | YR2500-10/1730 | 2500 | MFYX250 | |
Ф4x13 | 65 Closed-circuit | 15.95 | 202 | YRKK900-8 | 2800 | JS130-8 | 46.7 |
Ф4.2x13 | 85 Closed-circuit | 16.3 | 224 | YRKK900-8 | 3150 | MFY320 | 47.8 |
Ф4.2x13 | 85-87 | 16.3 | 224 | YR1000-8 | 3530 | JQS3550 | 15.6 |
HENAN ZHENGZHOU MINING MACHINERY CO.,LTD is leading mining equipments manufacturing in the world, who has provided innovative technology and products for mine and energy of over 100 countries and district. It is built in 1956 and locates its factory in XINNGYANG, HENAN, China. It is appointed as the fixed equipment-providing factory by Chinese Ministry of Machine Building and HENAN Mechanical Electronic Bureau.
